Nintendo DS (Original) Bottom LCD Screen Replacement Guide

Introduction

In this guide, I'll show you how to replace the bottom LCD screen on an original Nintendo DS. This repair requires removing the rear shell and motherboard before the bottom display can be removed.

Replacing the bottom LCD may help if the display is cracked, damaged, has dead pixels, displays incorrect colours, or no longer shows an image.

What you'll need

Phillips head screwdriver
Tri-wing head screwdriver
Plastic pick, spudger or opening tool
Precision tweezers
Replacement bottom LCD for the original Nintendo DS

Important: Take care when handling the LCD and ribbon cables during this repair. The ribbon cables and their connectors are fragile and can be easily damaged if pulled or forced.

Step 1 – Remove the battery and rear shell

Power off the Nintendo DS completely and disconnect the charger.
Close the console and turn it over so the rear shell is facing upwards.
Remove the screw securing the battery cover, then remove the cover and battery.
Remove the remaining screws securing the rear shell.
Carefully lift the rear shell away from the console to expose the internal components.

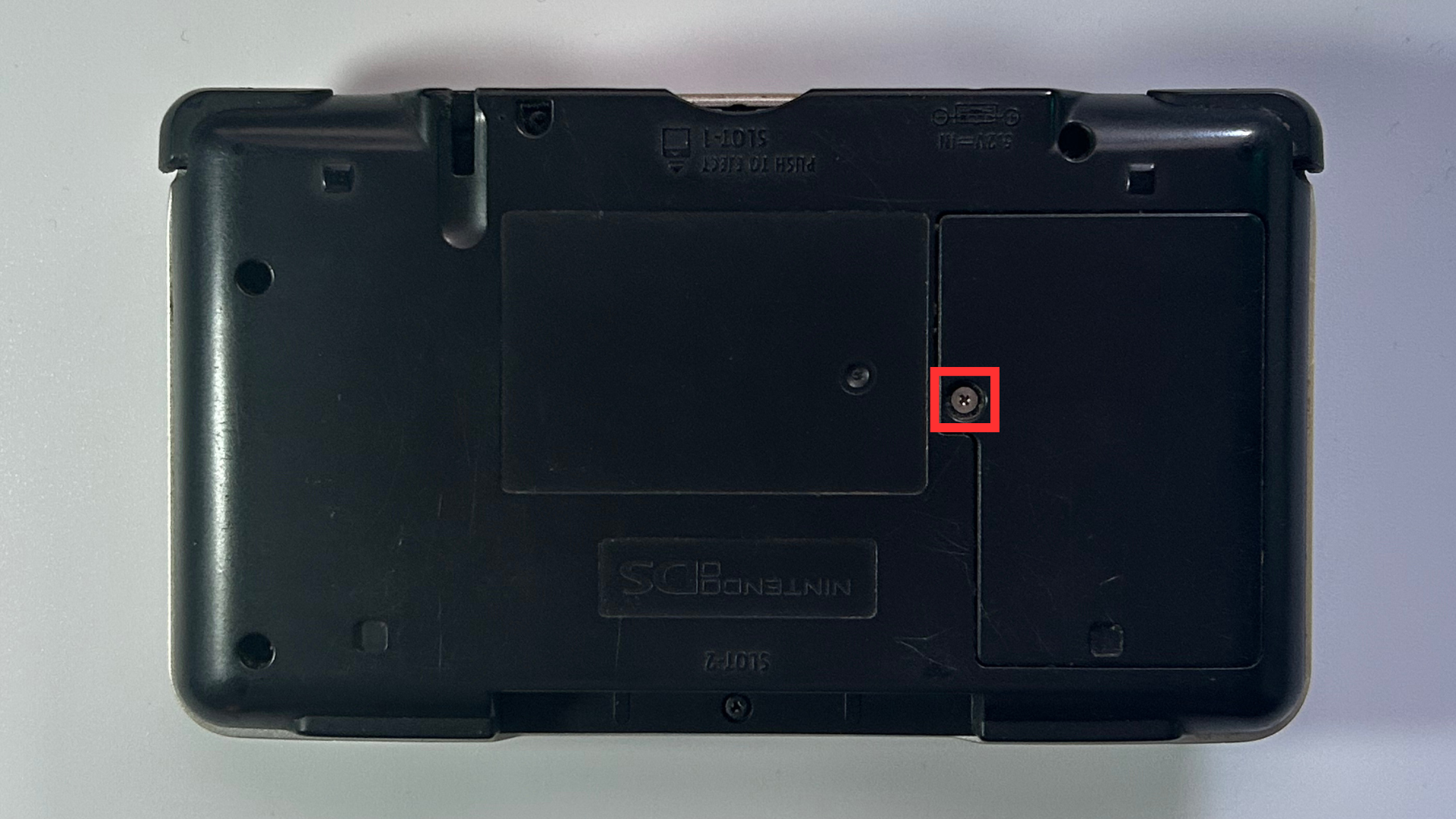

Original Nintendo DS showing the rear shell and screw locations — Remove the battery and rear shell screws to begin disassembling the Nintendo DS.

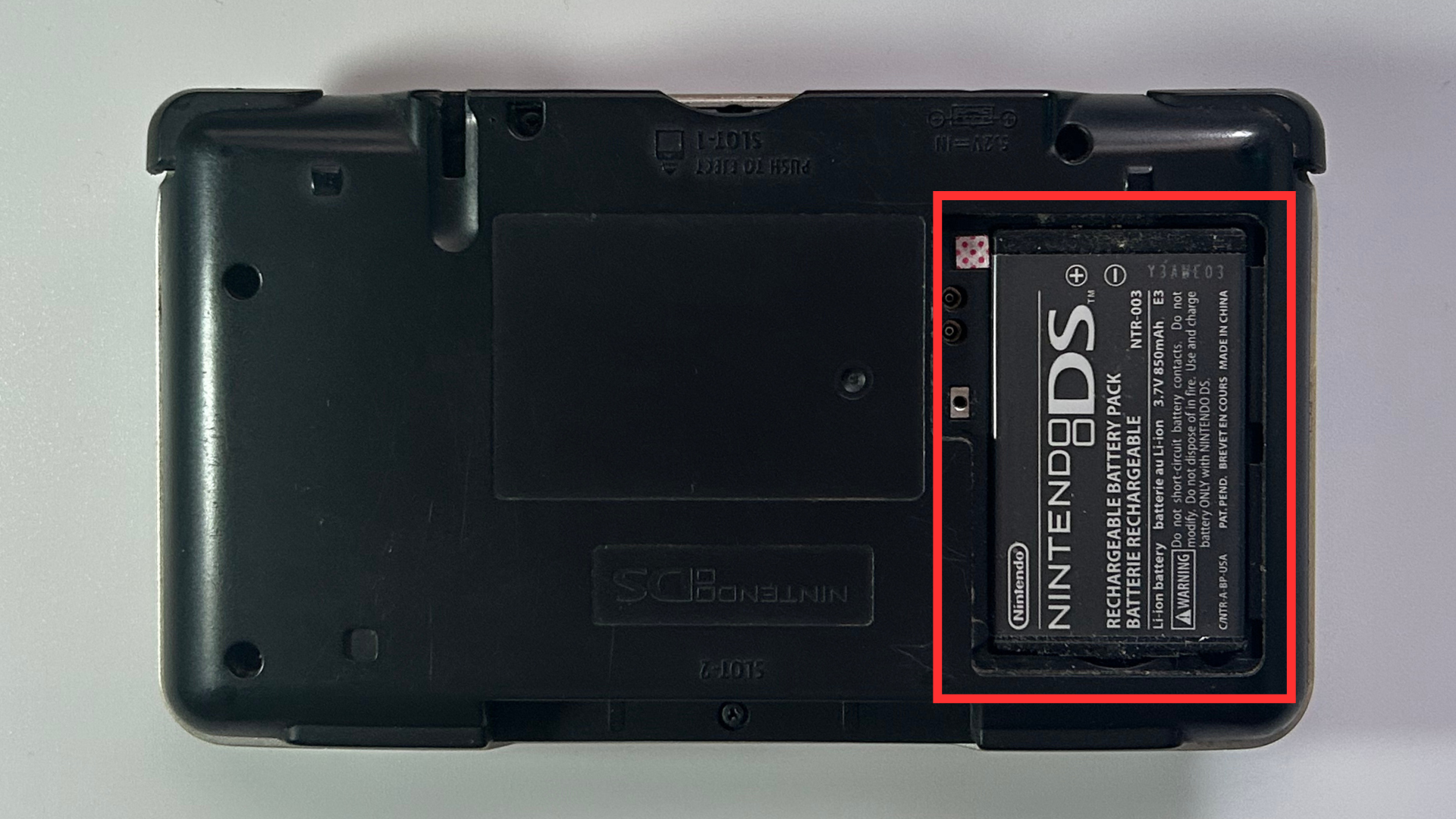

Original Nintendo DS with the battery cover removed

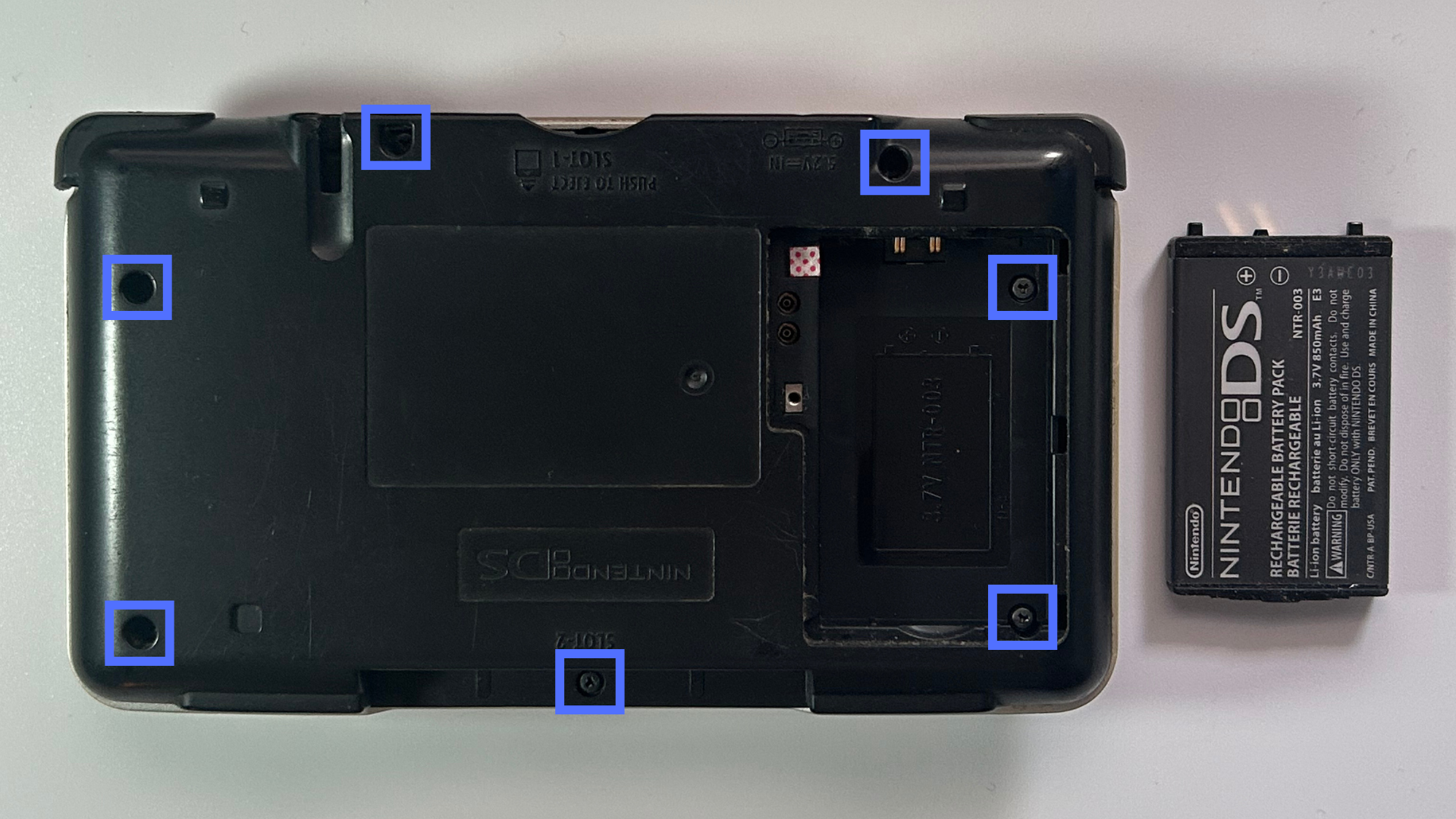

Original Nintendo DS battery removed from the rear compartment

Step 2 – Remove the motherboard

Remove the four Phillips screws securing the motherboard.
Disconnect the black antenna wire.
Carefully release the locking tabs for the two main ribbon cable connectors.

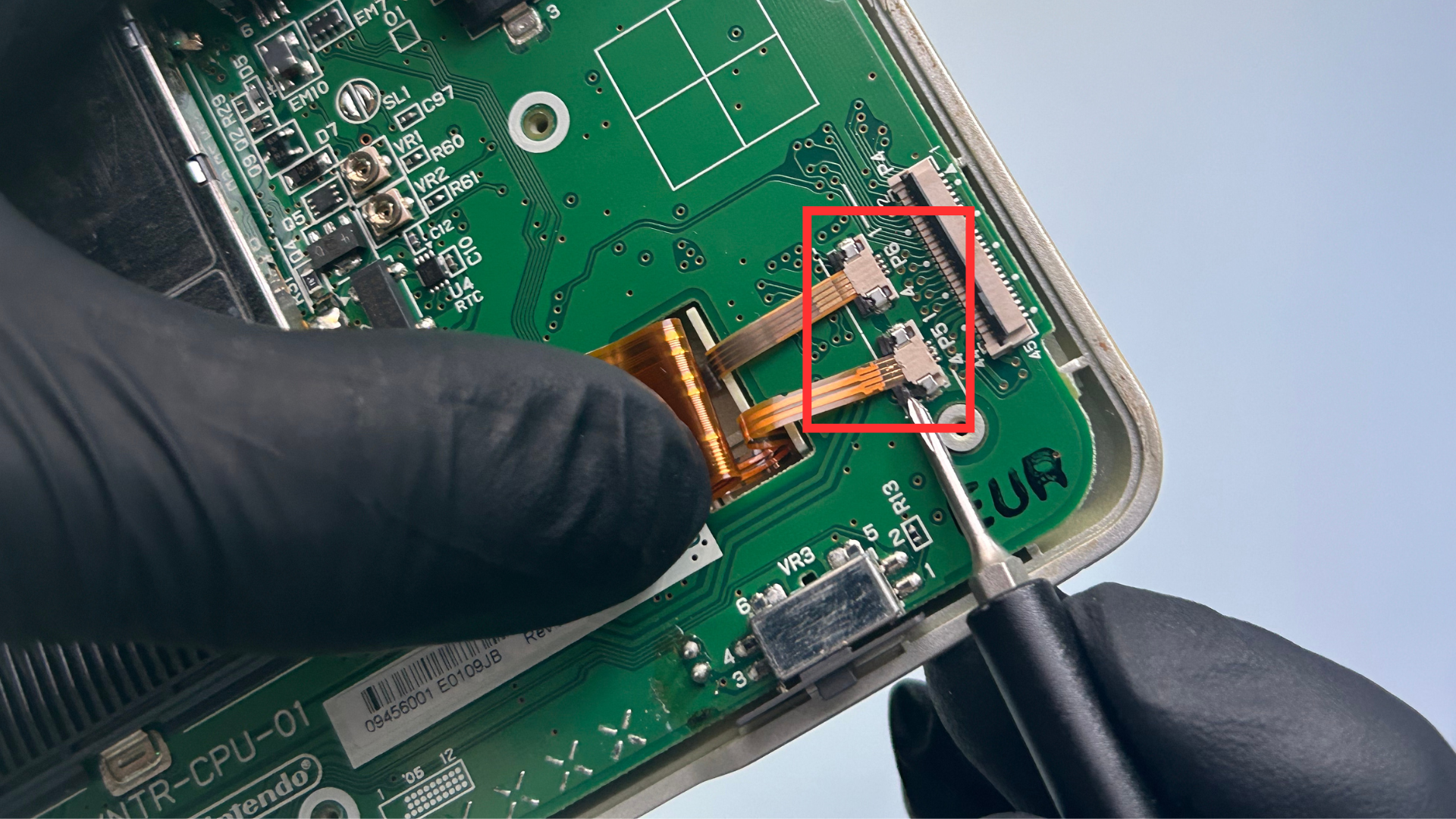

Beneath the ribbon cable on the right are two smaller ribbon cables. These are secured by very small black locking pieces. Use tweezers or a precision screwdriver to gently release them.
Once all cables are disconnected, carefully lift the motherboard out of the lower shell.

Important: Do not pull ribbon cables out of their connectors before releasing the locking tabs. The connectors are small and can be easily damaged.

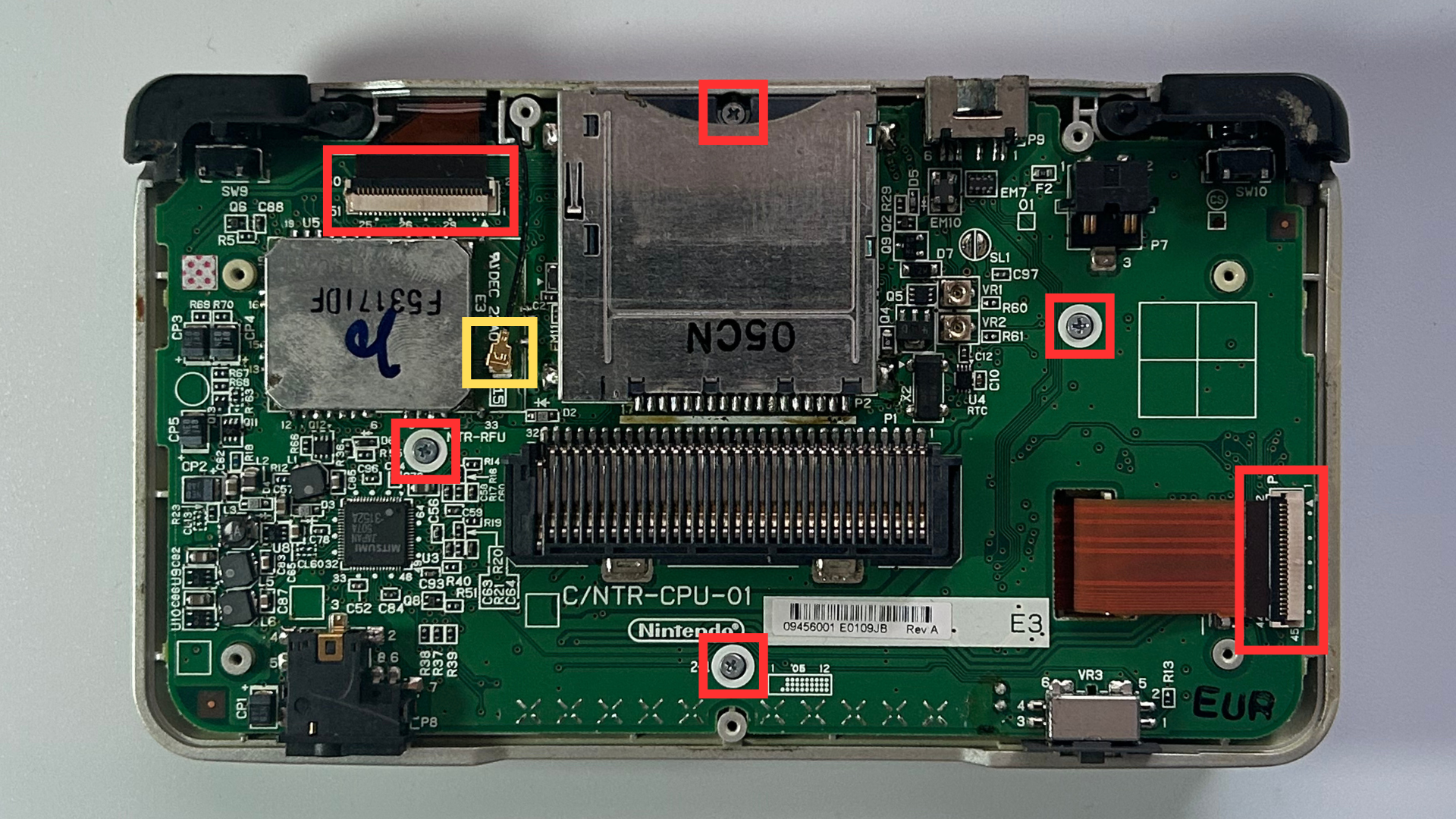

Original Nintendo DS with rear shell removed showing the motherboard — Disconnect the motherboard and ribbon cables before lifting the board from the shell.

Nintendo DS motherboard screws and internal connections

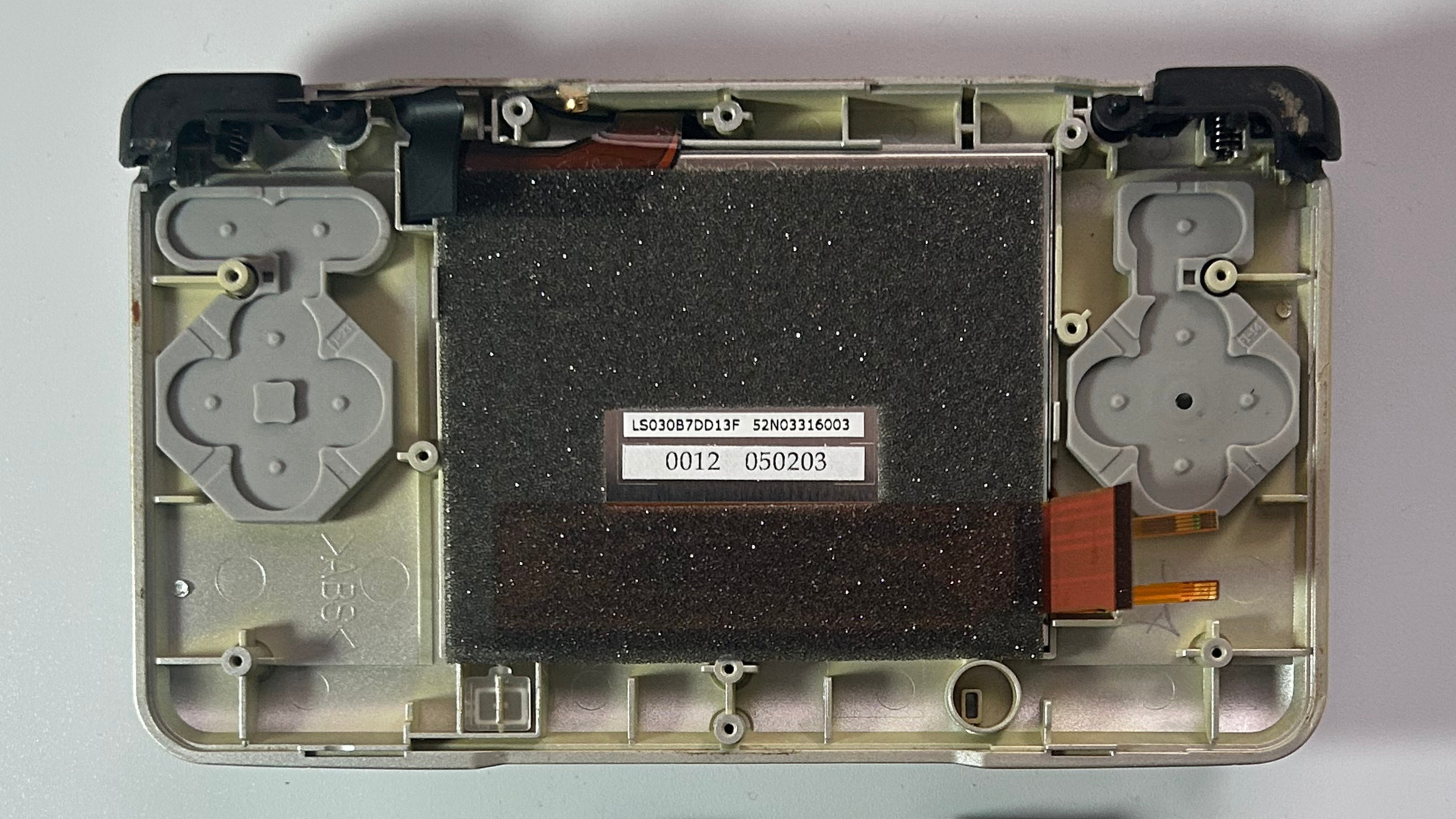

Nintendo DS ribbon cable connectors being disconnected from the motherboard

Step 3 – Remove the bottom LCD

Gently peel back the top-left corner of the foam layer on the rear of the bottom LCD to expose the ribbon cable adhered underneath.
Slide a plastic pick between the ribbon cable and LCD and carefully separate the adhesive.
If the adhesive is difficult to remove, a small amount of gentle heat can be used to help soften it.
Carefully lift the bottom LCD out of the shell.

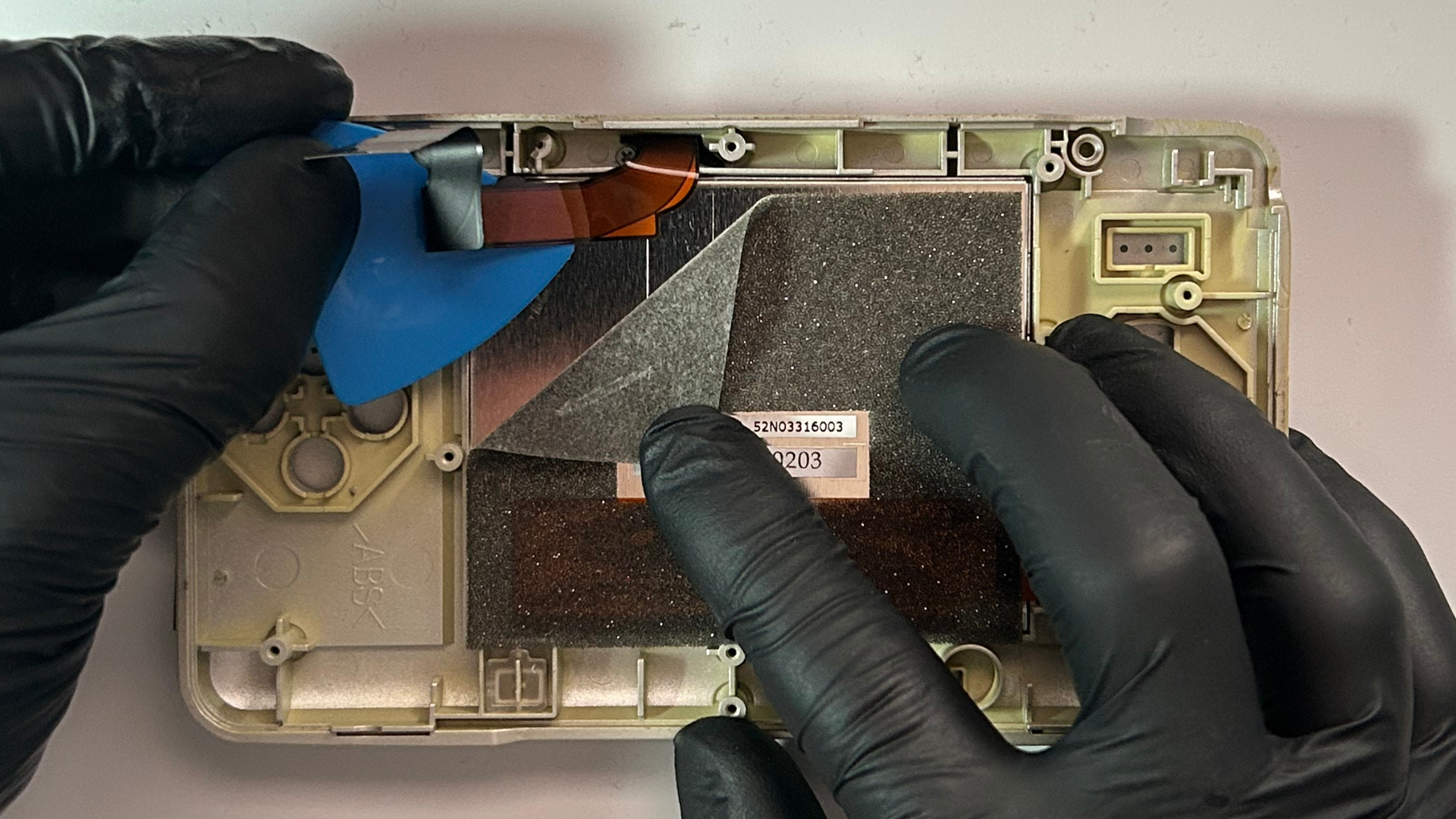

Bottom LCD inside an original Nintendo DS during removal — Carefully free the ribbon cable before removing the bottom LCD from the shell.

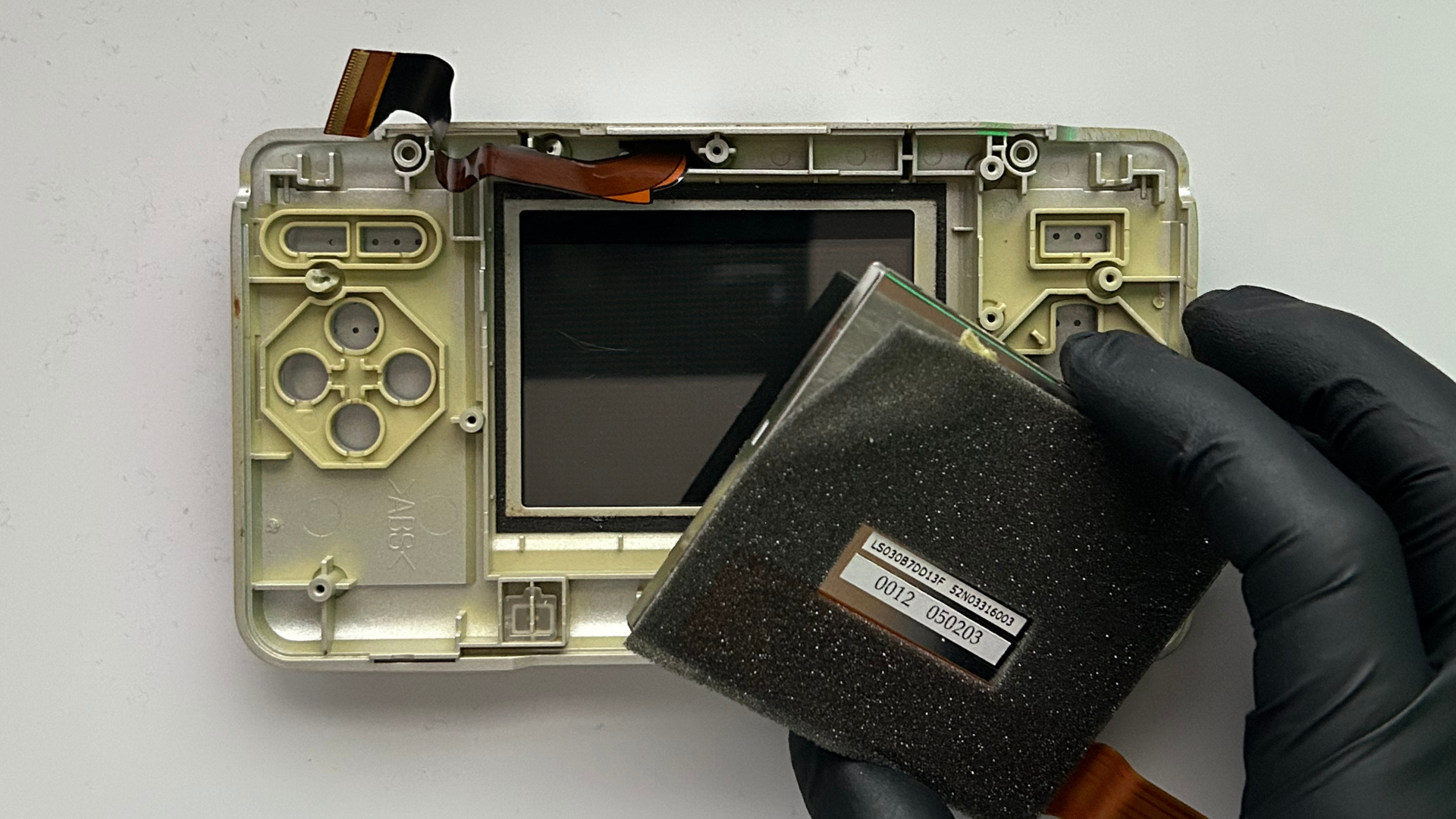

Original Nintendo DS bottom LCD removed from the lower shell

Step 4 – Separate the digitizer from the old LCD

Place the bottom LCD face-up on a clean, flat surface.
Carefully insert a thin plastic pick between the edge of the digitizer and the LCD assembly.
Slowly work the pick around the edges to separate the adhesive holding the digitizer to the LCD.
Take care around the digitizer ribbon cable and avoid applying excessive pressure to the LCD.
Once the adhesive has been released, carefully lift the digitizer away from the old LCD.

Important: Work slowly when separating the digitizer. Avoid bending it excessively or inserting the pry tool too deeply between the layers.

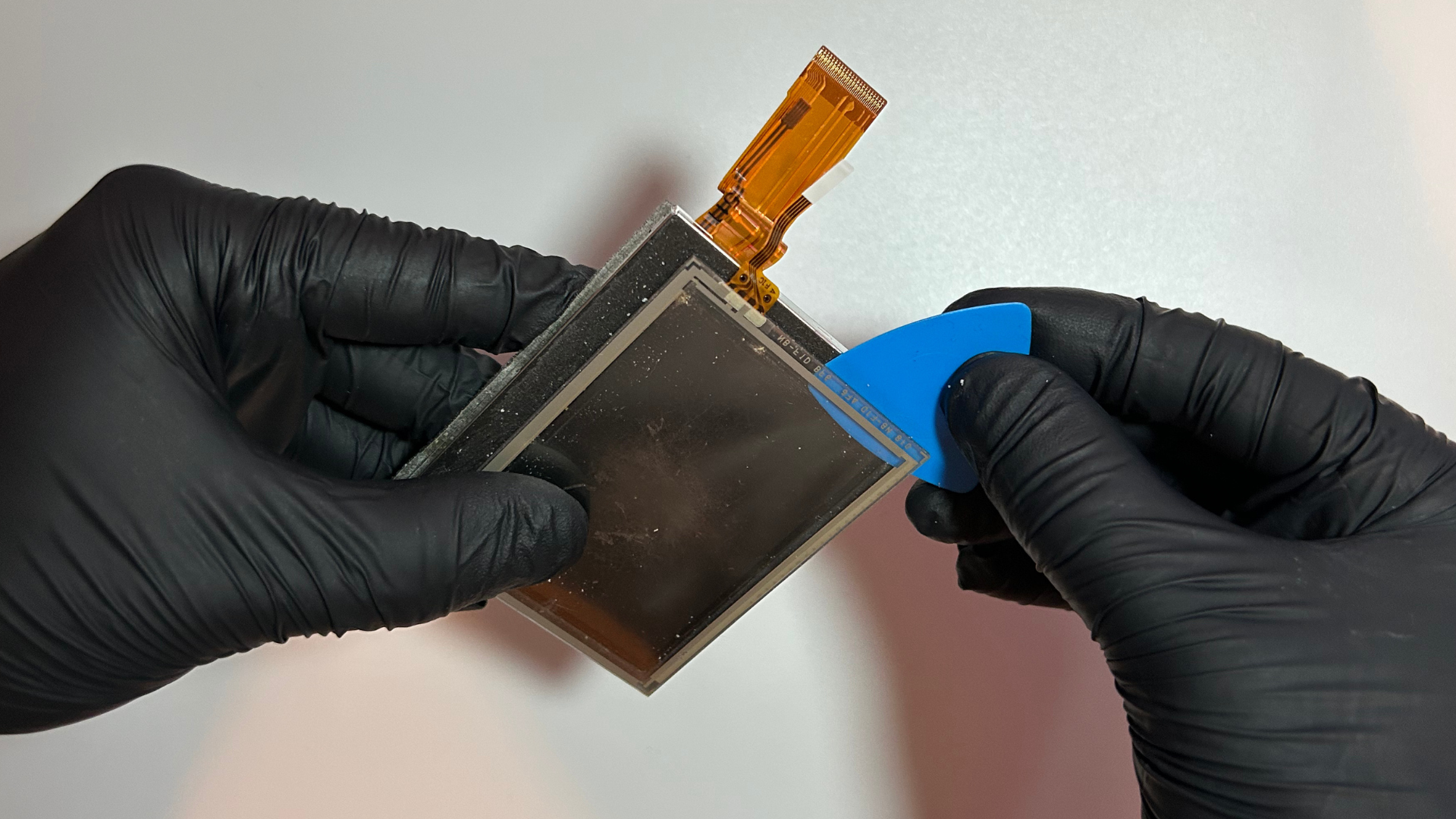

Touchscreen digitizer being separated from an original Nintendo DS bottom LCD — Carefully separate the touchscreen digitizer from the old bottom LCD.

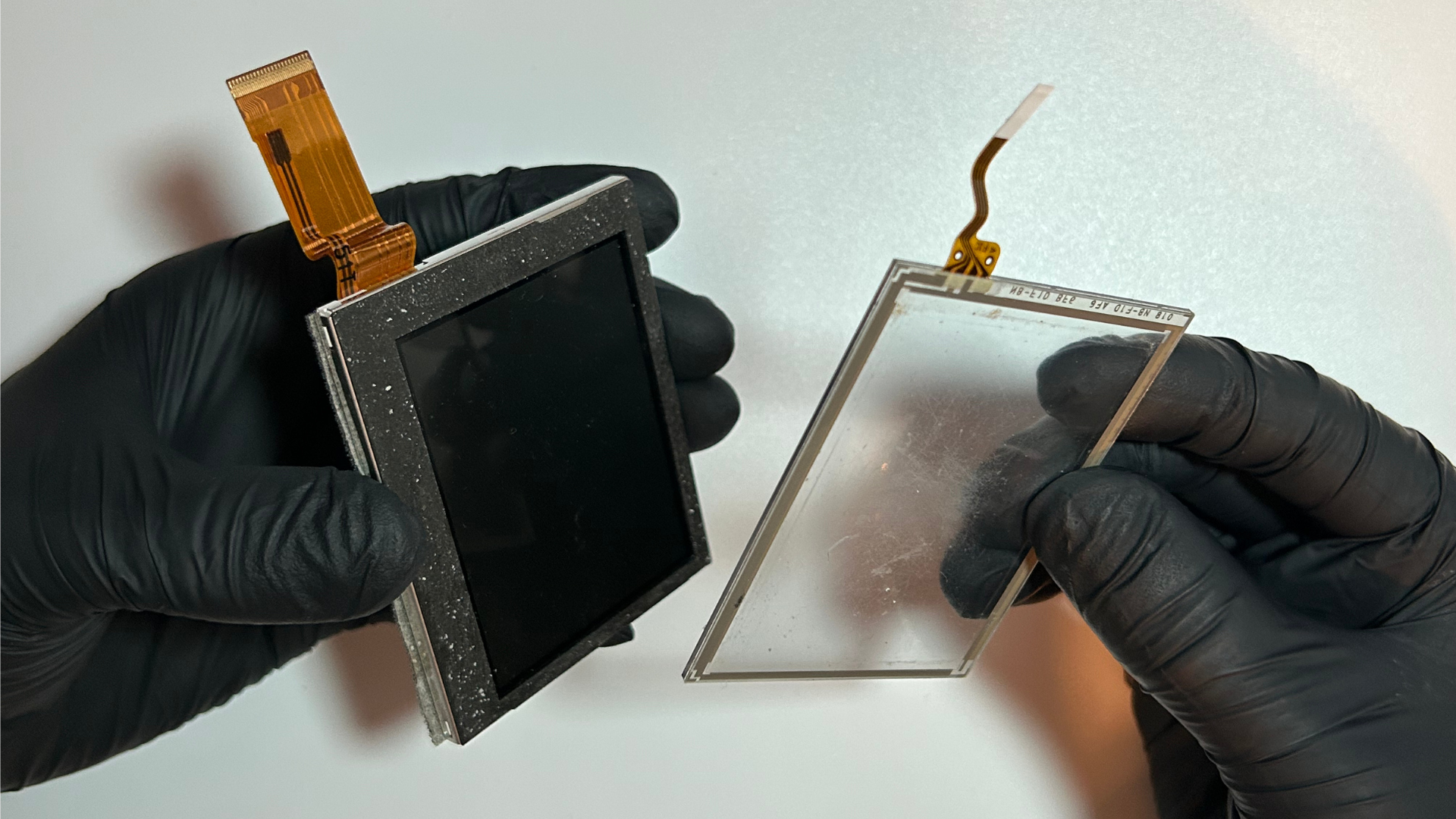

Original Nintendo DS digitizer removed from the bottom LCD

Step 5 – Install the digitizer onto the replacement LCD

Make sure the replacement LCD and digitizer are clean and free from dust or fingerprints.
Remove any old adhesive that could prevent the digitizer from sitting flat.
Apply suitable replacement adhesive if required.
Carefully align the digitizer with the replacement bottom LCD.
Once correctly positioned, gently press around the edges to secure it in place.

Tip: Check carefully for dust before attaching the digitizer to the replacement LCD. Any debris trapped between the two layers may remain visible once the console is reassembled.

Touchscreen digitizer being installed onto a replacement Nintendo DS bottom LCD — Align and attach the original digitizer to the replacement bottom LCD.

Step 6 – Reassemble and test the Nintendo DS

Place the replacement bottom LCD and digitizer assembly into the lower shell.
Reinstall the buttons and button membranes if they were removed.
Reinstall the motherboard and reconnect all ribbon cables and the antenna wire.
Make sure each ribbon cable is fully inserted and its locking tab is secured.
Refit the rear shell and reinstall the screws.
Reinstall the battery and battery cover.
Power on the Nintendo DS and check that the replacement bottom LCD displays correctly.
Test the touchscreen to confirm that the digitizer still responds correctly.

Important: If the bottom screen does not display correctly, power off the console before reopening it and checking the ribbon cable connections.

Conclusion

Replacing the bottom LCD on an original Nintendo DS can restore the display if the original screen is cracked, damaged, has dead pixels or is no longer displaying an image correctly.

After reassembly, check both the image and touchscreen functionality before considering the repair complete. If the display does not work correctly, double-check that the LCD ribbon cable is fully inserted and securely locked into its connector.
